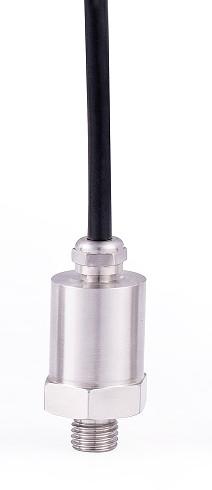

Features of PT208 ceramic pressure sensor
It's an advance pressure transducer than traditional mechanical pressure transducer.
2. ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
3. Light weight and small size, convenient to install and operate.
4. It has complete surge voltage protection function.
5. Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
Specifications of PT208 ceramic pressure sensor
| suring Range | -1000KPa~0-60MPa |
| Compensation Temperature | -10~70℃ |
| Output Signal | 4-20mA;1-5V;0-5V;00-20mA;Customization |
| Medium Temperature | Customization |
| Ambient Temperature | -40~85℃ |
| Enclosure Protection | IP65 |
| Pressure Type | Gauge pressure; Absolute pressure; Seal pressure |
| Temperature Effect on Zero | ±0.03%FS/℃ |
| Sensitivity Temperature Drift | ±0.03%FS/℃ |
| Overload Pressure | 200%FS |
| Long-term Stability | ≤0.2%FS/℃ |
| Natural Frequency | 5KHz~650KHz |
Applications of PT208 ceramic pressure sensor
● HVAC system
● Water filter
● Air conditioner control equipments
● Frequency water supply
● Water pump
● Building water supply
Description of PT208 ceramic pressure sensor
PT208 series is made of high quality stainless steel, imported from Germany and core pressure sensor chip, adopting digital calibration and compensation technology, and passed the safety certification and CE certification. Widely used in the compressor, pressure measurement in the field of automotive, air conditioning, etc.
Product line offers a variety of pressure sensor measuring principle, materials and display, in order to meet the operation requirements of industrial manufacturing facilities in the United States. For pneumatic applications, ceramic pressure sensors and pressure measurement technology are used. The PT208 pressure sensor resists dynamic pressure peaks and provides high overload resistance even under extreme pressure peak conditions such as rapid valve closure. Electronic pressure sensors protect against damage or downtime due to wear on mechanical moving parts and provide longer service life than conventional sensors in the critical moment of failure. Their applications range from simple monitoring tasks, such as switching to accurate digital pressure level measurements.
It provides high precision hydrostatic pressure sensors and used in indoor or space pressurization sensor application of commercial hvac system. These products are designed to provide critical measurements when evaluating static air pressure levels in external or internal Spaces. Our static pressure sensors and sensors are very accurate. The probe can detect room, space, static pressure, or pipe static pressure to an accuracy of less than 0.5% of the actual pressure value.

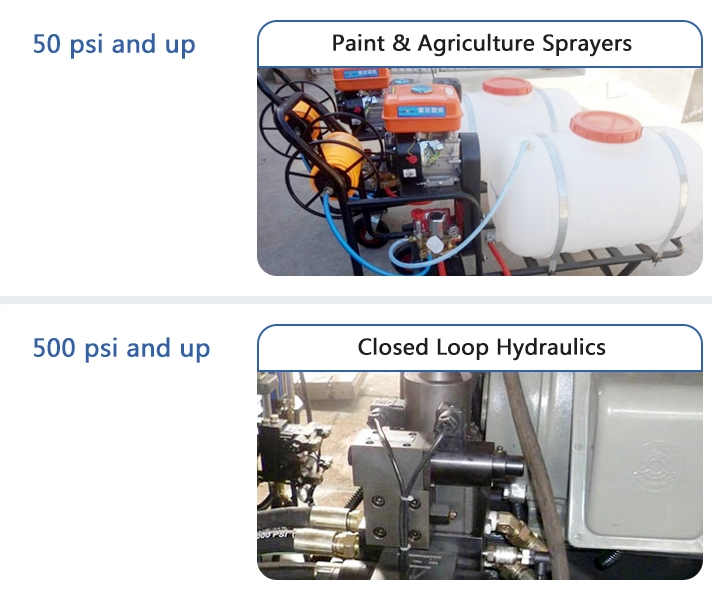

PT208 is widely used in:
Process control system Air compressor Refrigeration system
CNGSNG gas station Natural gas HVAC
Oil pumpdrilling Food industry Chemical industry
Hydraulic control system pump&water system Others
